| Feature: |

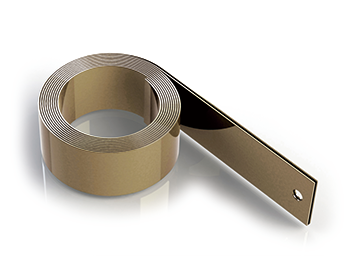

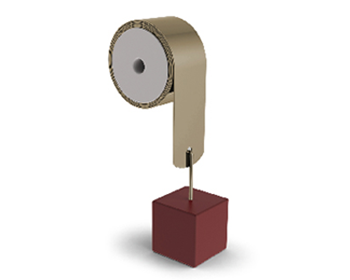

Constant force spring is made by winding the steel strip into a coil which exerts a nearly constant retraining force to resist uncoiling.

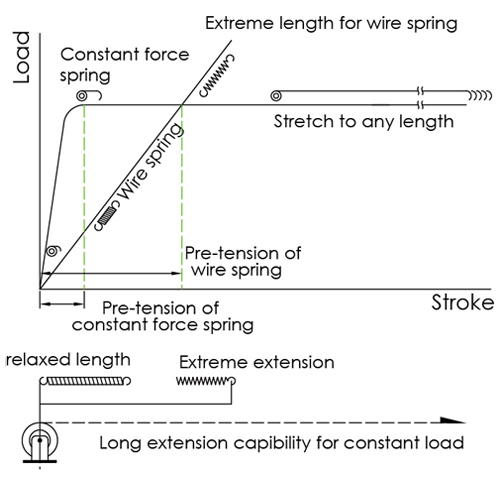

Constant force springs offer following advantages:
1. High force output with very small space requirements

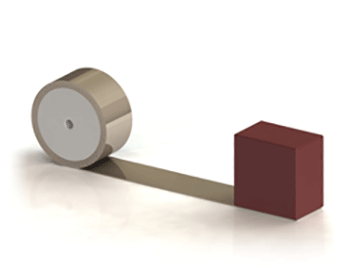

2. To exert nearly constant force during entire extension.
3. Short initial pretension, it means that can afford the rated load at short extension.
4. Provides long extension capability
They are ideal for a wide variety of applications where constant force is needed, including applications requiring smooth returning and retrieving, counterbalancing applications, and tensioning and loading applications.
There are a number of different spring design possibilities for a given application, we strongly suggest you to consult with a Ming-Tai engineer early in the design phase.
We will create an optimized solution for your spring demand. Custom designs are available as well.
|
|
|
|
| Function+ Applications |
 |
 |
Constant Force Spring offer high force output, it can be applied for tensioning & loading usage, such as nail pusher of nail gun.
|
| Tensioning & Loading |

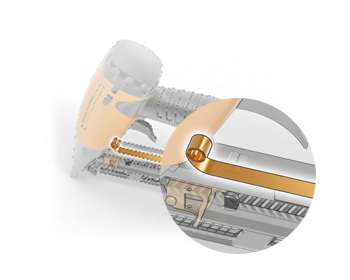

Nail Pusher of Nailers |
|
 |
 |
Constant Force Spring features short initial pretension; it means that can afford the rated load at short extension. Constant Force Spring is ideal for counterbalancing application, such as high adjustment for monitors. |
| Counterbalancing |

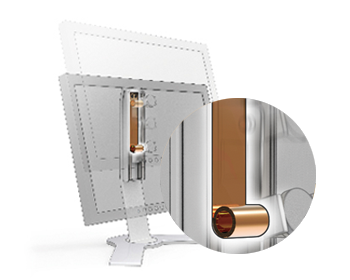

High Adjustment for Monitors |
|
 |
 |
Constant Force Spring exerts nearly constant force during entire extension with small space requirement. Constant Force Spring can be uses for applications that require smooth returning and retrieving, such cup hold in cat interior. |
| Retrieving & Returning |

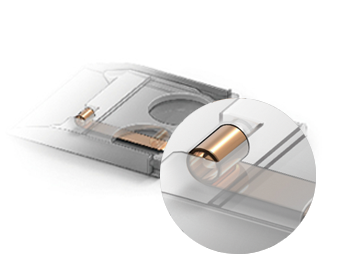

Cup Holder for Car Interior |
|
| Mounting Method and Example |
 |
 |
|

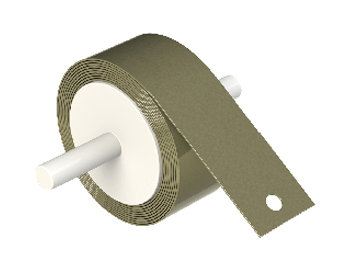

| Drum Mounting |

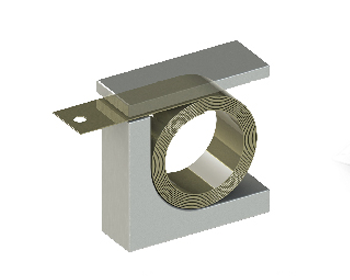

Cavity Mounting |
|
| Multiply the Load |
 |
 |
 |
| Tandem |

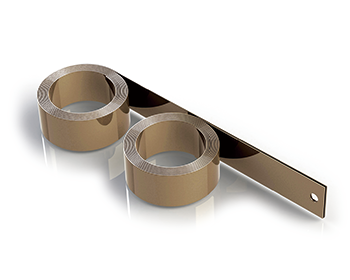

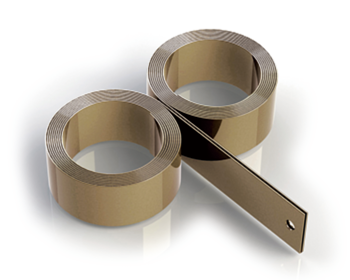

Back to back |
Laminated |
|
